Electronically commutated sensorless motor, slotless stator design,Hollow shaft
DBL024-05XX 技术参数
| 1 | Rated voltage | 4.0 | V | ||
| 2 | Terminal resistance | 89 | Ω | ±10% | at (25℃±5℃) Including lead wire resistance* |
| 3 | Stall current | 44 | mA | ±10% | Calculated value ( 1 / 2 ) |
| 4 | Back-EMF constant | 0.024 | mV/rpm | Min. | |
| 5 | Torque constant | 0.23 | mNm/A | Min. | |
| 6 | Stall torque | 0.010 | mNm | Min. | Calculated value ( 3* 5 ) |
| 7 | Operating Speed | 100~6000 | rpm | Drive Circuit ; SOD12ST | |
| 8 | Total length | 5.0 | mm | ||
| 9 | Direction of rotation | CW/CCW | |||
| 10 | Insulation resistance | OL | Between Housing and Terminal |

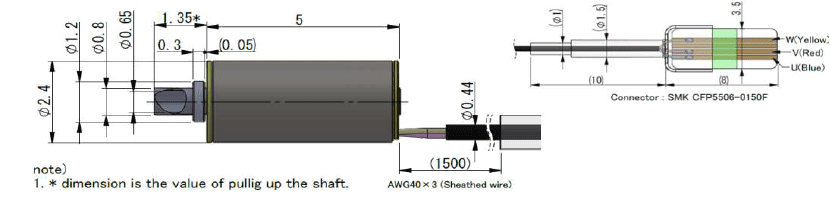

※DBL024-05XXは、直径2.4mm, 長さ5mmのブラシレスモーターです。
*lead wire length =1500mm
